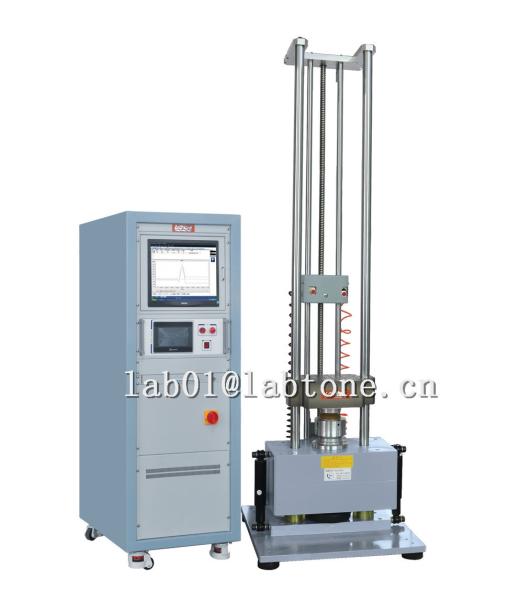

Computer Control Mechanical Shock Test Equipment With Controller And Software

Name: Computer Control Mechanical Shock Test Equipment With Controller And Software
Brand: LABTONE
Price: 1 USD

Buy cheap Computer Control Mechanical Shock Test Equipment With Controller And Software product

Brand Name : LABTONE

Model Number : HSKT10

Certification : CE, ISO

Place of Origin : CHINA

MOQ : 1SET

Price : Negotiable

Payment Terms : T/T

Supply Ability : 15 Sets / Month

Delivery Time : 45 working days

Packaging Details : International wooden case

Model : HSKT10

Table size : 200 x 250 mm

Payload : 10 kg

Waveform Generator : half sine (1set)

Lead time : 35 working days

Sensor : LAB

Contact Now

Computer Control Mechanical Shock Testing Machine With Controller and Software

Introdcution:

The HSKT series shock test system is mainly applicable to shock resistance tests in such fields as electronic products, battery products, aerospace, military industry, automotive parts and transportation. Shock tests are in form of half sine wave, saw tooth wave or trapezoidal wave. Shock tests can be carried out by selecting different waveform generators.

Labtone provides shock testing equipment ranging in both size and performance capability. To help guide interested customers, we’ve put together a list of key considerations that help select the most appropriate shock test system.

Technical Specifications

Model	HSKT10	HSKT30
Table size (mm)	200x250	300x300
Shock pulse	Half sine
Maximum Specimen Weight(Kg)	10	30
Acceleration Range(G)	20 ~ 2000	20 ~ 1500
Pulse Duration (ms)	0.2~18	0.5~30
Machine Dimension(mm)	660x700x2380	720x680x1890
Utility Requirements	AC220V 50Hz 5A,Air pressure: more than 0.5Mpa
Machine Weight(Kg)	820	650

Equipment composition

No.	Equipment name	Model	Qty.
1	Shock tester table	HSKT10	1set
3	Controller	SKC-1	1 set
4	Shock measuring and analyzing system	ST-2	1 set
5	Sensor	LAB	1pcs
6	Control computer		1 set
7	Waveform generator	HB01	1 set
8	Safety device	Audible and visual alarm	1 set
9	Attached accessories	Tools, clamps/instructions, installation disc, etc.	1 set

Features

Warranty:

One year limited warranty with lifetime support; extended warranty available upon request at additional cost.
After-sale service:

On site installation and trainning are avaiable at extra cost.
Technical support

Certificate: China official third-party calibration report / CE Certification

Customer Service

Service timeliness

When a fault report is received from customer〈including telephone, fax and email〉:
LABTONE will respond within 4-8 hours (working time), provide solutions and eliminate faults within 12-24 hours. After the equipment's guarantee period ended, supplier still has obligation to provide users with technical supports and after-sales services.

Presales:

Technical consultation: test method, laboratory planning and suggestion.
Equipment selection: selection scheme, FAQ.
Product testing scheme.

In-Sales:

Customer communication and progress report.
Guidance for pre-installation preparation, equipment commissioning and test run
Calibration (when Third Party’s verification is required)

After-Sales:

Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
Technical support: special paid services are provided according to customer’s needs.

Customer Lab:

Computer Control Mechanical Shock Test Equipment With Controller And Software
